100 Base 2 Lan Port Optical Fiber Media Converters 10M / 100M / 1000M

100 Base 2 Lan Port Optical Fiber Media Converter 10M / 100M / 1000M

Quick Details:
Brand Name: DYS
Model Number: Fiber Converter
band width: 100 Base
Humidity: 5%-95%
Power Loss: <55w
Operating Temperature: 0℃~50℃
Technical Specifications
◆Operating standard:

IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX/FX Fast-Ethernet
IEEE802.3x
◆MAC address table:  1K
◆Data Buffer :128Kb RAM
◆Connector: UTP: RJ-45, 10/100Mbps;  Fiber: SC, 100Mbps

◆Cable:
UTP: Cat. 5 UTP (the max distance up to100m)
Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)
◆Flow control
Full Duplex:IEEE802.3x
HalfDuplex:back pressure
◆LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.
◆Power :Input:AC 110~265V or DC:-36V~-72V
        Output:DC 12-24V 1A
◆Conversion mode: Medium conversion
◆MTBF: 80, 000 hours
◆Ambient temperature:0 ～+50℃
◆Storage temperature:-20 ～+70℃
◆Humidity:c
◆Dimensions:
Power external: 26 (high) x 70 (width) x 94 (length) mm
Power internal : 30 (high) x 110 (width) x 140 (length) mm

Main features
◆The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.
◆Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
◆UTP port supports MDI / MDI-X auto crossover.
◆Supporting flow control
◆Supporting 1552 bytes packet
◆Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
◆Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
◆Supports link fault pass through function
◆Design of internal or external power supply for selection by end-users


Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

Certificate of qualification

fiber media converter

serial media converter

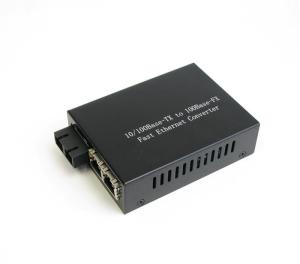

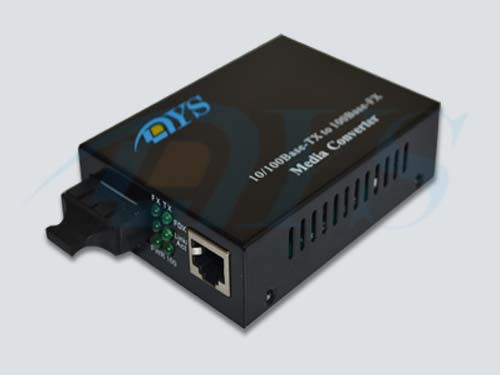

100 Base 2 Lan Port Optical Fiber Media Converters 10M / 100M / 1000M Images
