Cable Tube Fiber Optic Splice Sleeve Coated With Hot Melt Adhesive

Name: Cable Tube Fiber Optic Splice Sleeve Coated With Hot Melt Adhesive
Brand: DYS/OEM
Price: 1 USD

Buy cheap Cable Tube Fiber Optic Splice Sleeve Coated With Hot Melt Adhesive product

Place of Origin : Shenzhen（China）

Brand Name : DYS/OEM

Certification : RoHS

Model Number : Sealing Splice Sleeve

Capcity : 48-144core

Materials : Sealing

MOQ : Negotiable

Packaging Details : 100pcs in 1 packign or Customized

Delivery Time : 3days

Payment Terms : T/T or L/C,Western Union

Supply Ability : 500000PCS / Month

Name : Fiber Optic Splice Sleeves

Applications : Reconstruct the fiber coating

Features : Good moisture

Usage : Ensure good optical transmission properties

Features1 : Waterproof, RoHS compliant

Price : Negotiable

Contact Now

Cable Tube Fiber Optic Splice Sleeves Coated With Hot Melt Adhesive

Quick Details:

Brand Name: DYS

Model Number: Heat-shrinkable

Type:Cable Tube

Length: 60mm

Steel OD: 1.5mm

Materails: plastic and steel

Detailed Product Description

wall heat shrink tube with adhesive, .Use in telecommunication cable closure and fiber optical closure,

This products is medium wall heat shrink tube with adhesive, Use in telecommunication cable closure and
fiberoptical closure, coated with hot melt adhesive, have reliable waterproofing and prevent the air leak.
The style of adhesive can supply coating directly or gyroidal according customer’s requirements.Coated
with sensitive paint, easy to installation indication.

Temperature Range

Continuous Use Temperature:-55C～105C

Minimum fully shrink temperature:120C

No.	Test item	Test method	result
1	Tensile Strength	ASTM D638	13 N/mm2
2	Ultimate Elongation	ASTM D638	450%
3	Heating impact @ 250ºC	UL 224	conformity
4	low temperature test @ -30ºC	ASTM D2671	conformity
5	Dielectric Strength	ASTM D149	25kV/mm
6	Volume Resistance	ASTM D257	1x1014Ω•cm
7	Longitudinal Change	ASTM D2671	± 8%
8	Water Absorption	ASTM D570	<0.5%
9	Peeling Strength	DIN 30672	≥125N/25

Cable Tube Fiber Optic Splice Sleeve Coated With Hot Melt Adhesive

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

type	as supplied	after recovery		type	as supplied	after recovery
type	as supplied	(mm) Diameter	(mm)	type	as supplied	(mm) Diameter	(mm)
Φ28/6	28	6.0	2.5	Φ55/16	55	16	2.7
Φ33/8	33	8.0	2.5	Φ65/19	65	19	2.8
Φ35/12	35	12.0	2.5	Φ75/22	75	22	3.0
Φ40/12	40	12	2.5	Φ95/25	95	25	3.0

Product Tags:

heat shrinkable sleeve

fiber optic sleeve

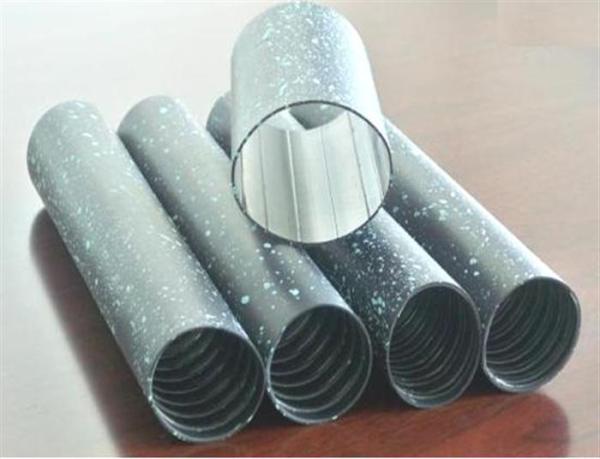

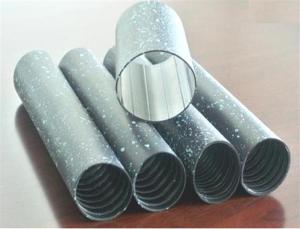

Cable Tube Fiber Optic Splice Sleeve Coated With Hot Melt Adhesive Images
