SC/APC To SC/APC Singlemode 3m Simplex LSZH Sfp Fiber Optic Patch Cord
1.Fiber optic patch cord is available in both singlemode and multimode versions.
2.Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end.
3.These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability
APPLICATION
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
FEATURES
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard
PRODUCT PARAMETERS
| Mode | Single mode | Multimode |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥50dB | ≥60dB | ≥30dB |
| Test Wavelength | 1310/1550nm | 850/1310nm |
| Durability(500 Matings) | ≤0.2dB |
| Operating Temperature | -40℃~+60℃ |
| Storage Temperature | -45℃~+85℃ |
| Fire Resistant | IEC 60794-2-30 |
| Standards-Compliant | ROHS,IEC and GR-326 |
| Fiber type | Single mode: | (1)9/125-G652D | (2)9/125-G655 | (3)9/125-G657A,G657A2 | (4)9/125-G657B3 |
| Multimode: | (5)50/125-OM2 | (6)62.5/125-OM1 | (7)50/125-OM3 | (8)50/125-OM4 | (9)50/125-OM5 |
| Fiber Brand | YOFC, Corning, Sumitomo, Fujikura |
| Connector | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm |
| Cable jacket | PVC, OFNR, LSZH, OFNP |
| length(M) | 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized |
Product Tags:
|
|

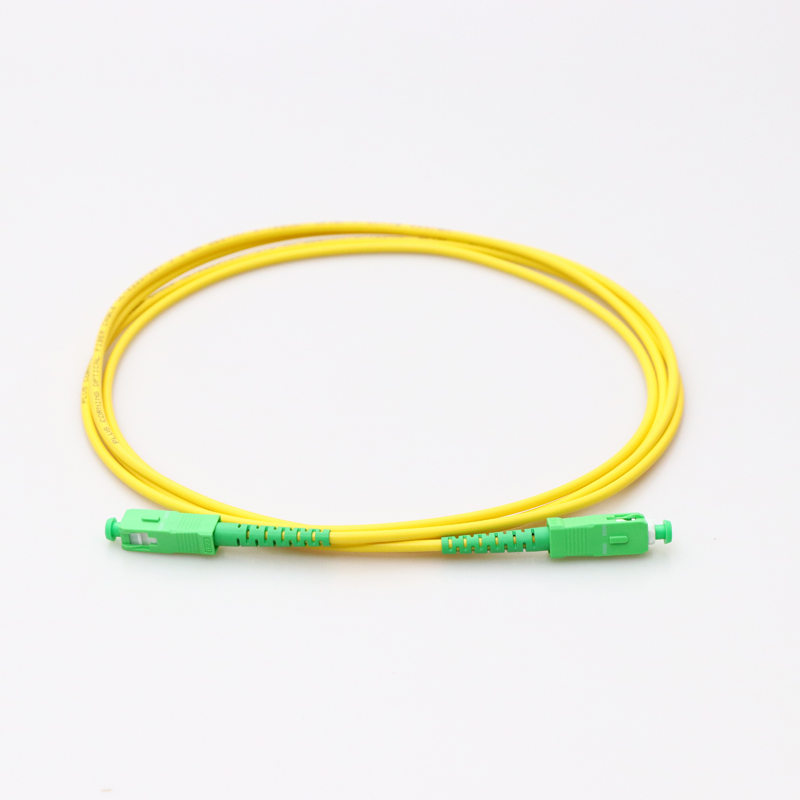

SC/APC To SC/APC 3m Simplex LSZH Sfp Optical Fiber Patch Cord Images
|
