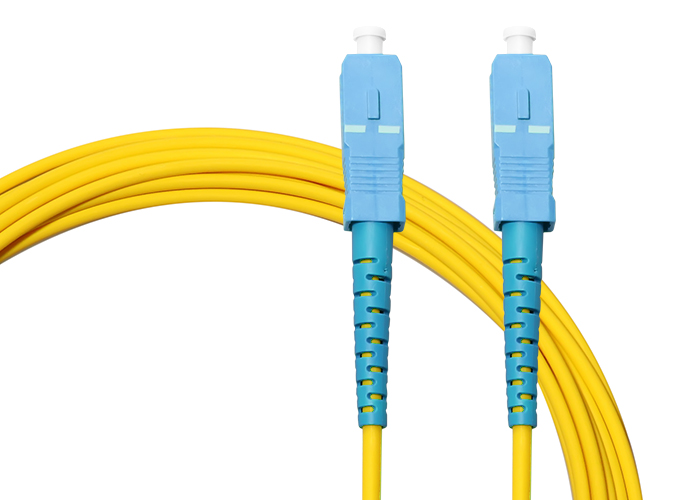

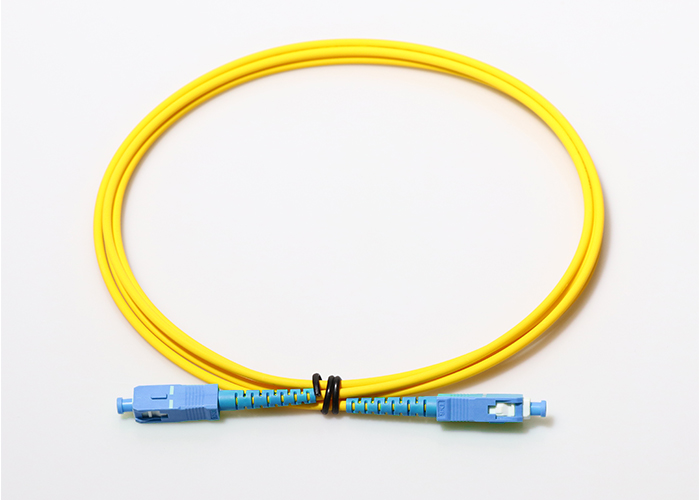

High quality Single Mode 9/125 Duplex SC/UPC-SC/UPC Fiber Optic Patch Cord
Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.
APPLICATION
1. Telecommunications
2. CATV, LAN, MAN, WAN, Test &Measurement
3. Military industry
4. Medical
PRODUCT PARAMETERS
| Mode | Single mode | Multimode |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥50dB | ≥60dB | ≥30dB |
| Test Wavelength | 1310/1550nm | 850/1310nm |
| Durability(500 Matings) | ≤0.2dB |
| Operating Temperature | -40℃~+60℃ |
| Storage Temperature | -45℃~+85℃ |
| Fire Resistant | IEC 60794-2-30 |
| Standards-Compliant | ROHS,IEC and GR-326 |
| Fiber type | Single mode: | (1)9/125-G652D | (2)9/125-G655 | (3)9/125-G657A,G657A2 | (4)9/125-G657B3 |
| Multimode: | (5)50/125-OM2 | (6)62.5/125-OM1 | (7)50/125-OM3 | (8)50/125-OM4 | (9)50/125-OM5 |
| Fiber Brand | YOFC, Corning, Sumitomo, Fujikura |
| Connector | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm |
| Cable jacket | PVC, OFNR, LSZH, OFNP |
| length(M) | 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized |
Packaging & Shipping
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or Foclink brand are available
Inner packing: 1pcs in a plastic box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
The transportation : By air ,by sea ,by DHL ,Fedex TNT ,UPS ...
1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.
2. When our company be established?
Answer: We started from year 2008.
3. What's our main products?
Answer: DYS dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.
4. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines
5. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
