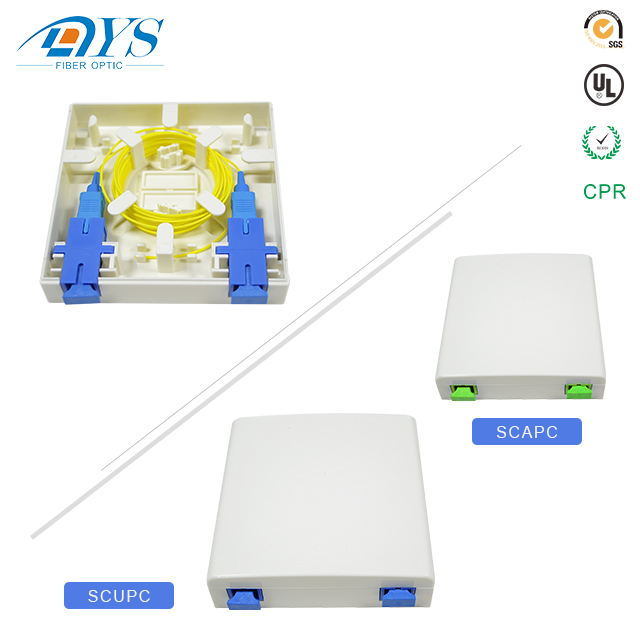

Wall Mount FTTH 2 Port SC Fiber Optic Terminal Box

  • 1
  • 2
  • 3

Brand Name : DYS/OEM

Model Number : FTTH-006

Certification : IS09001-2015.ROHS

Place of Origin : Guangdong, China (Mainland)

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 500000PCS / Month

Delivery Time : 3-5 work days

Packaging Details : Individual box or according to customer's request

Adaptor ports : 2

Adapter type : SC Simplex

Environment temperature : -25~40 celsius

Size : 86*86*10mm

Cable diameter : 5mm-10mm

Material : ABS OR PC

Cable ports : 2

Certificate : ISO9001, ROHS

Contact Now



Brandnew material white SC Fiber Optic 2 core Faceplate FTTH box 2 port mini ODF

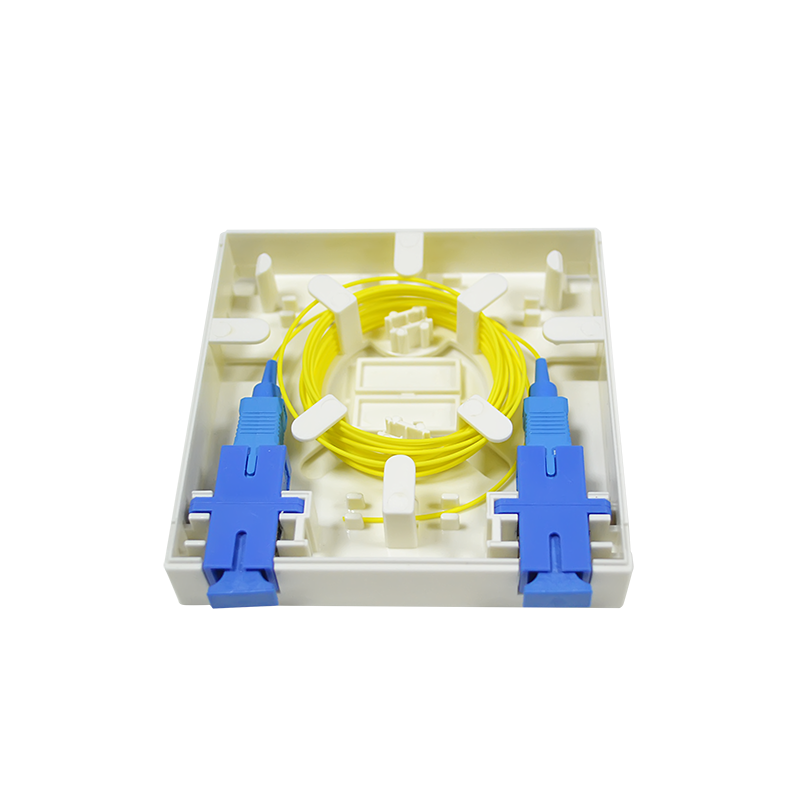

The fiber terminal box is the end of a cable, one is the cable, the other is the pigtail, the equivalent of a fiber optic cable is
split into a single optical fiber equipment, installed on the wall of the user cable terminal box, its function is to provide

|Fiber and fiber welding, fiber and pigtail welding and optical connector transfer. And to provide mechanical protection and
environmental protection for optical fibers and their components, and to allow proper inspection to maintain the highest standards
of fiber management.



Features
* Wall installation,space saving,easily installation
* Light weight,high intensity,Good crashworthiness and dustproof
* Clear management for the patch cord and easily find
* Sufficient space can be ensure the fiber bending rate


Application
* Maximum capacity 2 cores
* SC,FC,LC,Suitable adaptor interface
* 1.5mm Material thickness
* 86*86*30mm
* Weight:0.1kg


SPECIFICATIONS

Parameter Value Remark
Model FTTH-006
Outside Dimension (mm) 86*86*25
Material ABS
Color White
Storage of fibers G.657
Splice capacity 2fiber
Splice Method Fusion Splice 45mm sleeve
Adapter type and count 2 SC/SX or 2 LC/DX
Input cable 3mm or figure 8 (2*3mm) From side or bottom





ACCESSORIES

No. Name Qty.
1 Fiber splice protection sleeve 2pcs
2 Expansion bolts for the outlet wall-mounted 2 set





Wall Mount FTTH 2 Port SC Fiber Optic Terminal Box

Wall Mount FTTH 2 Port SC Fiber Optic Terminal Box

Wall Mount FTTH 2 Port SC Fiber Optic Terminal Box
