LC APC Simplex 9/125 Single Mode G657A Fiber Optic Pigtail

Name: LC APC Simplex 9125 Single Mode G657A Fiber Optic Pigtail
Brand: DYS/OEM
Price: 1 USD

Buy cheap LC APC Simplex 9/125 Single Mode G657A Fiber Optic Pigtail product

Brand Name : DYS/OEM

Model Number : LC/UPC

Certification : IS09001-2015.ROHS

Place of Origin : guangdong

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C,T/T

Supply Ability : 50000PCS / days

Delivery Time : 3-5 work days

Packaging Details : Individual box or according to customer's request

Connector type : ST SC LC FC

Length : 1m 2m 3m or Customized

Material : PVC/LSZH

Product name : Fiber Optic Pigtail

Color : Yellow

Real factory : Yes

Fiber type : SM or MM

Fiber Mode : 9/125

Cable Diameter : 0.9mm

Contact Now

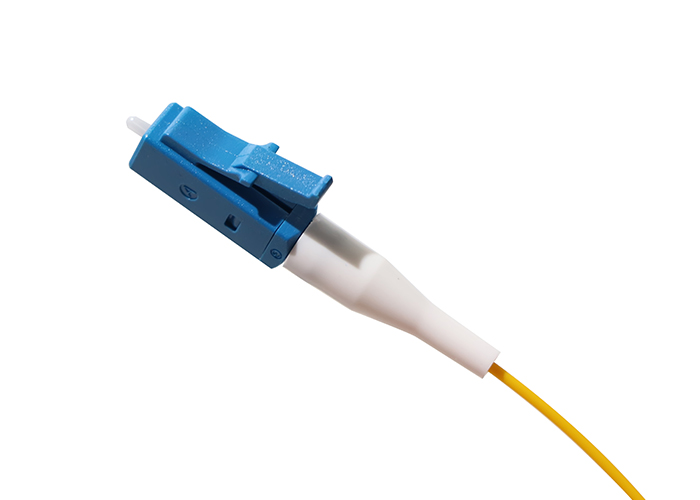

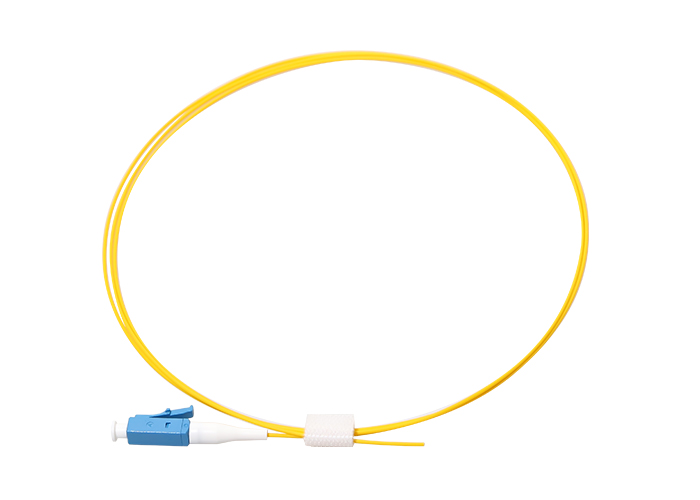

LC/ APC fiber pigtail Simplex 9/125 Single Mode G657A Fiber Optic Pigtail

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

We also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

PRODUCT PARAMETERS

Mode	Single mode		Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.30dB	≤0.20dB	≤0.20dB
Return Loss	≥50dB	≥60dB	≥30dB
Test Wavelength	1310/1550nm		850/1310nm
Durability(500 Matings)	≤0.2dB
Operating Temperature	-40℃~+60℃
Storage Temperature	-45℃~+85℃
Fire Resistant	IEC 60794-2-30
Standards-Compliant	ROHS,IEC and GR-326

LC APC Simplex 9/125 Single Mode G657A Fiber Optic Pigtail
