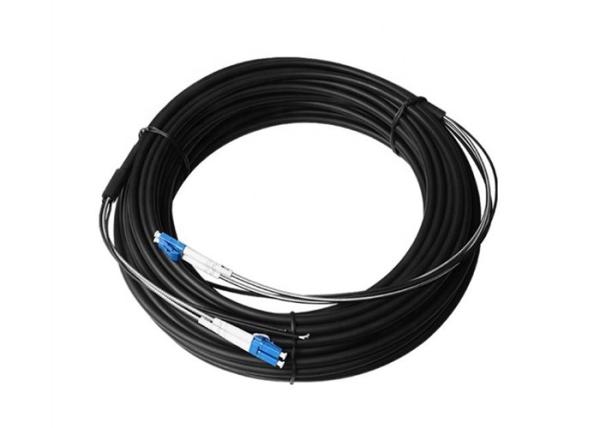

7.0mm 4.8mm FTTA CPRI LC Armored Fiber Optic Cable

Name: 70mm 48mm FTTA CPRI LC Armored Fiber Optic Cable
Brand: DYS/OEM
Price: 1 USD

Buy cheap 7.0mm 4.8mm FTTA CPRI LC Armored Fiber Optic Cable product

Brand Name : DYS/OEM

Model Number : CPRI cable

Certification : ISO9001

Place of Origin : Guangdong, China (Mainland)

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, D/A, D/P, , MoneyGram

Supply Ability : 30000PCS/day

Delivery Time : 2-5/days

Packaging Details : Individual Box or According to Customer's Request

Product name : CPRI Patch Cords

Connector : Duplex LC

diameter : 7.0mm

Cable jacket size : 7.0mm, 4.8mm

Length : 1m 2m or Customized

Application : FTTH FTTB FTTX Network

Adapter face : UPC

Fiber Type : Singlemode

Contact Now

7.0mm/4.8mm Ftta Outdoor Cable Assembly, Fiber Optic Cpri LC Armored Cable

The CPRI patch cords are standard size for Duplex LC Connectors, widely used in FTTA, Base station, and the outdoor waterproof condition. SOPTO supplies FTTA (Fiber to the Antenna) DLC (Dual LC Connector) SM GYFJH 2G.657A patch cord for TD-SCDMA, WCDMA,CDMA2000, Wimax, 2G, 3G, 4G and 5G Base Station BBU-RRU outdoor. These products are good for CPRI application.

The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof, dust proof
Low insertion/return loss, steady optical transmitting.
Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
500cycles Mechanical life
Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE

PRODUCT PARAMETERS

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

7.0mm 4.8mm FTTA CPRI LC Armored Fiber Optic Cable

Product Tags:

LC Armored Fiber Optic Cable

7.0mm Armored Fiber Optic Cable

4.8mm FTTA Patch Cord
