Fibre Optic 1x32 PLC Splitter with SC/APC Connector
Description of PLC Splitter:
PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. DYSFO's PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Application:
1. FTTX networks
2. PON networks
3. CATV links
4. Data Communication
Types:
1. Basic type PLC splitter
2. SFF type PLC splitter
3. 900um Fan-out Type PLC Splitter
4. Cassette type PLC splitter Module
5. Rack type PLC splitter Module
6. Tray assembly PLC splitter Module
7. Flat Quick-Connect Termination Type PLC Splitter Module
Feature:
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. Wide Operation Wavelength
4. Wide Operation Temperature
5. High Stability and Reliability
6. Telcordia GR-1209 and GR-1221 Compliance
7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)
Specification:
| Parameter | Unit | 1×2 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×32 | 1×64 |
| | Premium Grade |
| Insertion Loss at 23°C | Typ. | dB | 3.9 | 6.8 | 9.3 | 10.0 | 12.1 | 13.2 | 16.5 | 20.0 |
| Max | dB | 4.0 | 7.0 | 9.6 | 10.4 | 12.6 | 13.5 | 16.8 | 20.5 |
| Channel Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.0 | 1.6 | 1.6 | 1.6 | 2.0 |
| PDL | Typ. | dB | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | 0.2 |
| Max | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| | Standard Grade |
| Insertion Loss at 23°C | Typ. | dB | 4.0 | 7.0 | 9.5 | 10.4 | 12.4 | 13.6 | 17.0 | 20.5 |
| Max | dB | 4.2 | 7.3 | 10.0 | 10.6 | 12.8 | 13.8 | 17.1 | 20.8 |
| Channel Uniformity | Max | dB | 0.6 | 0.8 | 1.0 | 1.0 | 1.0 | 1.4 | 1.6 | 2.0 |
| PDL | Typ. | dB | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | 0.3 |
| Max | dB | 0.2 | 0.3 | 0.3 | 0.2 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | Min | dB | 55 (Premium Grade)/50 (Standard Grade) |
| Directivity | Min | dB | 55 |
| Operation Wavelength | nm | 1260~1650 |
| Operation Temperature | °C | -4-~+85 |
| Storage Temperature | °C | -4-~+85 |
| Fiber Type | - | G.657A or Customized
|
Product Tags:
|
|

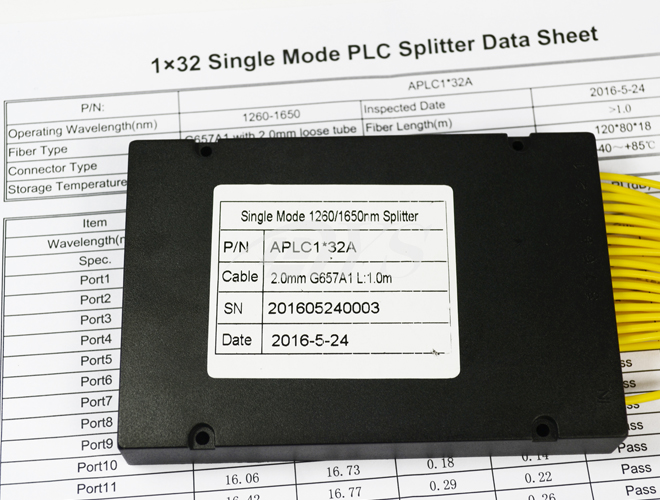

Fibre Optic 1x32 PLC Splitter with SC/APC Connector Images
|
