1*16 SC/APC PLC Optical Fiber Splitter

Brand Name : DYS/OEM

Model Number : Passive PLC

Certification : IS09001-2015.ROHS

Place of Origin : shenzhen

MOQ : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 50000/week

Delivery Time : in 3 days

Packaging Details : Individual Box or According to Customer's Request

Ferrule Polish : APC,UPC,PC

Price : Negotiable

Contact Now

1*16 SC/APC PLC Optical Fiber Splitter







Quick Detail:



Model Number: 1*16 SC/APC



Length: 1m ,1.5m, 2m or customized length



Ferrule Polish:APC,UPC,PC





1.  Features


Various coupling ratio
Low insertion loss, low PDL
Environmental stable
Industry standard and custom housing available
Variety of connectors available
1x2, 1x4 and 1x n customized couplers configuration availableSingle mode and multi mode available






2.   Applications


Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting



 3.  specifications



Parameter

Configuration

N x 4(N=1,2,16)

N x 8 (N=1,2,8)

N x 16 (N=1,2,16)

N x 32 (N=1,2,32)

Operate Wavelength(nm)

1310/1550, or customized

Bandwidth(nm)

±20

Max.Excess Loss(dB)

0.2

0.3

0.4

0.5

Typ.Insertion Loss(dB)

6.2

9.3

12.4

15.5

Max.Insertion Loss(dB)

6.8

10.2

13.6

17

Uniformity(dB)

1.2

1.8

2.4

3

PDL(dB)

0.08

0.12

0.16

0.2

Thermal Stability(dB)

0.2

0.3

0.4

0.5

Directivity(dB)

>≥60

Operate Temperature(°C)

-40~ +70

Lead Length(m)

1 or customized

Lead Type(mm)

φ3.0, φ2.0, φ0.9







Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; And good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.




Product Tags:

multimode fiber splitter



single mode fiber splitter


Buy cheap 1*16 SC/APC PLC Optical Fiber Splitter product

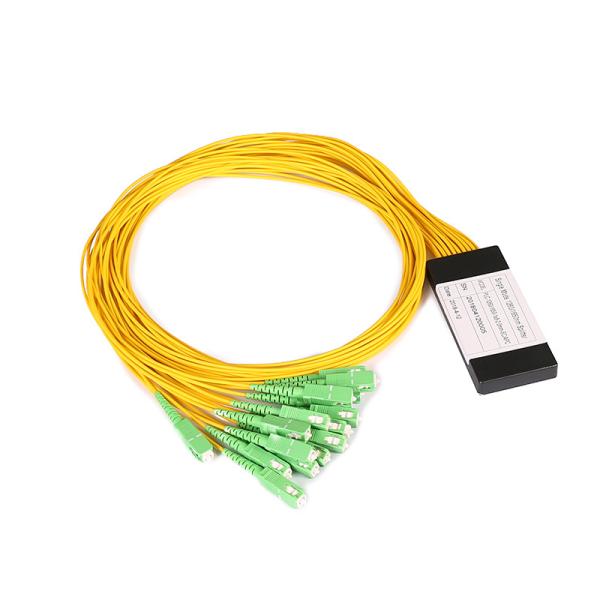

1*16 SC/APC PLC Optical Fiber Splitter Images
